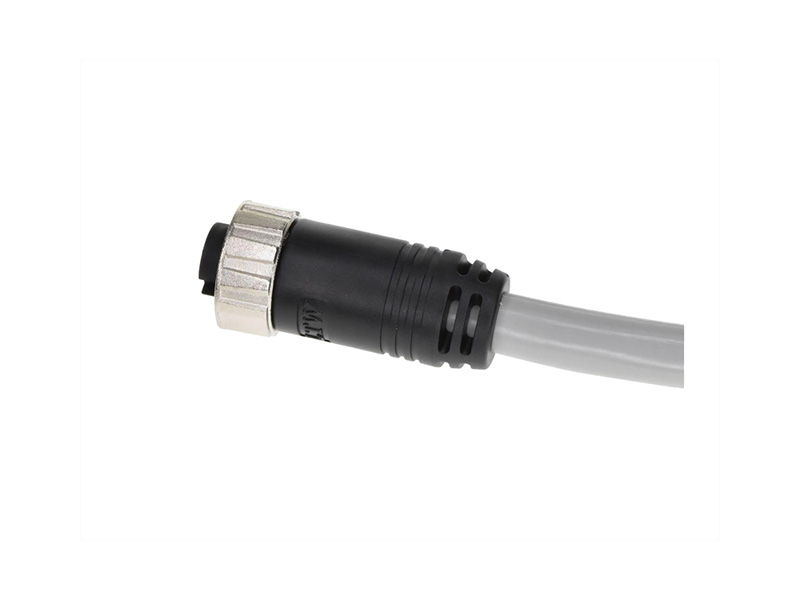

NMEA 2000, Mini, DeviceNet, Metal Non-shielded, 8A, 05 pins, Female Connector, Female Contact, Straight, Screw Thread, Overmolded, Length 50000mm, PVC, 16/18 AWG, IP68 Mated
In the absence of stock, the standard factory lead time is 8–10 weeks.
Model number: MN-05AFFM-SL8C50
| Quantity | Price |
|---|---|
| 1 ~ 99 | NT$ 9,838 (USD$ 339.24) |
| 100 ~ 499 | NT$ 6,558 (USD$ 226.14) |
| 500 and above | NT$ 5,792 (USD$ 199.72) |
| Specification | |
|---|---|
| Nominal Current | 8A |
| Cable O.D | Φ10.0mm |
| Wire/Cable Length | 50000 |
| Salt Spray | 48h |
| Operating voltage | 600V |
| Panel Thickness | N/A |
| IP Rating | IP68 |
| Mating Style | Screw Thread |
| Backshell | Straight |
| Contact Gender | Female |
| No. of Contacts | 05 |
| Connector Type | Overmolded |
| Wire AWG | 16, 18 AWG |
| Shielded | MetalNon-shielded |
