In the fast-paced industrial networking world, achieving high-speed data transmission is crucial. Imagine your systems operating seamlessly without the hassle of connectivity issues. Amphenol LTW’s M12 IDC connectors offer the solution, providing reliable, interference-free connections. These connectors are designed for durability and efficiency, supporting up to 10 Gbps Ethernet in even the most challenging conditions.

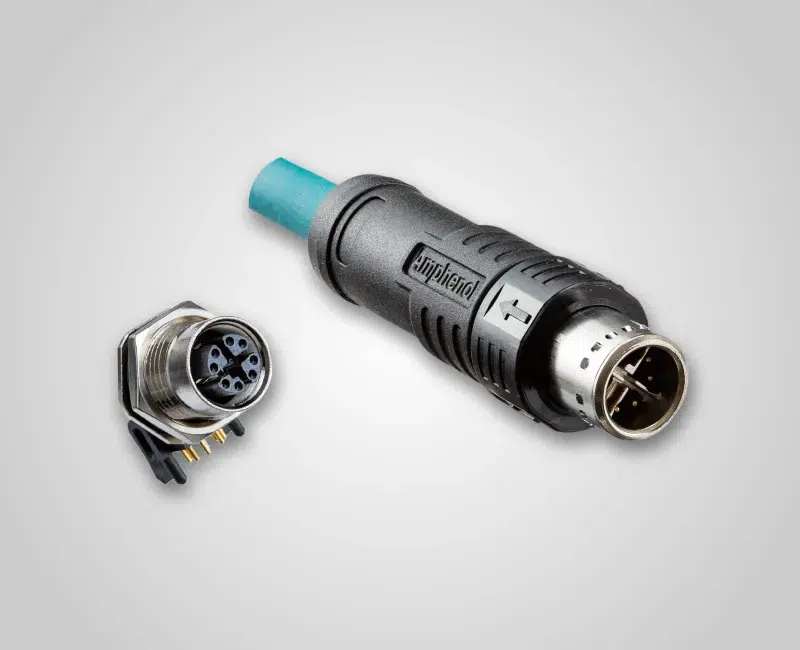

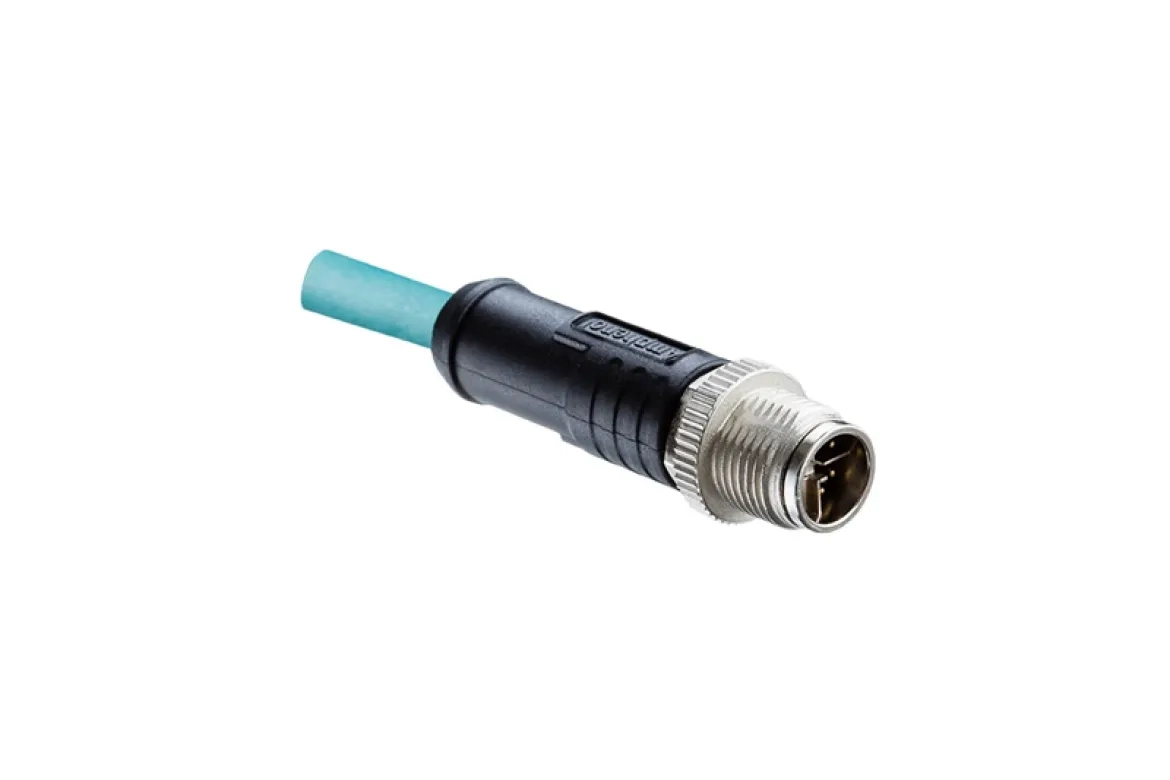

Before you decide, explore the prices and availability of M12 IDC connectors and consider the ease of M12 A-Code / D-Code / X-Code IDC-type field-installable connectors for quick, hassle-free installation. Discover how these connectors can revolutionize your industrial networking systems.

An M12 IDC connector is a circular connector specifically designed for high-speed Ethernet applications. It features an A, D, X-coded pin layout, ensuring secure and high-bandwidth data transfer without interference.

These connectors are widely used in industrial automation, smart factories, and transportation systems, where reliable and fast communication is essential.

The M12 IDC connector range offers a variety of options to suit different needs:

• Lengths Available: Choose from 0.5m, 2m, 5m, and 10m, with the possibility of customization for specific requirements.
• Contact Types: Available with IDC and solder contacts for versatile applications.
• Cable Compatibility: Suitable for both shielded and unshielded cables.
• Comprehensive Solutions: Includes M12 A, D, X-coded cable assemblies, connectors, and adapters for high-speed data transmission.

This flexibility ensures you can find the perfect product

Step 1: Choose the Right Connector and Cable

• Select an M12 IDC connector that matches your application requirements (e.g., Cat. 6A for 10 Gbps transmission).
• Ensure the cable is shielded and compatible with high-speed Ethernet protocols.

Step 2: Prepare the Cable for Assembly

• Following the manufacturer's guidelines, strip the cable to expose the individual wires.
• Check that the cable length allows secure and strain-free connections.

Step 3: Insert the Wires into the Connector

• Carefully align the wires with the designated A, D, X-coded pin layout.
• Avoid twisting or damaging the internal conductors during insertion.

Step 4: Secure the Connection Using the Patented Locking Mechanism

• Amphenol LTW’s patented locking system ensures a tight, vibration-resistant connection.
• Turn the connector clockwise until it clicks into place, securing the contact points.

Step 5: Verify the Connection

• Conduct a continuity test to ensure proper electrical connections.
• Use a network tester to confirm high-speed data transmission is functioning correctly.

Step 6: Finalize the Installation

• Secure the cable using cable ties or strain relief clamps to prevent movement.
• Double-check that no wires are exposed and the shielding is grounded correctly.

To extend the lifespan and maintain the performance of your M12 IDC connectors, follow these maintenance tips:

1. Regular Inspection and Cleaning

• Check connectors periodically for dirt, dust, or corrosion.
• Use a dry, lint-free cloth to clean contacts and remove debris.
• Apply a contact cleaner to remove oxidation without damaging the pins if necessary.

2. Protect Against Moisture and Contaminants

• Use IP-rated enclosures in outdoor or harsh environments to protect against dust and water ingress.
• Ensure the connector sealing is intact to prevent moisture damage.

3. Prevent Cable Strain and Excessive Bending

• Avoid excessive pulling or bending that can cause internal wire breakage.
• Use strain relief solutions to reduce mechanical stress on the connector.

4. Secure Connections After Relocations

• If connectors are unplugged for maintenance or upgrades, inspect and reconnect them securely.
• Ensure the patented locking mechanism is engaged adequately before restoring operations.

5. Perform Regular Electrical Testing

• Conduct periodic network speed and signal integrity tests to detect any performance drops.
• If intermittent data loss occurs, inspect the shielding and replace worn-out cables.

Amphenol LTW’s M12 IDC connectors stand out due to their robust construction, high-speed capabilities, and compliance with international standards. They are built for demanding industrial environments and ensure long-term reliability.

Patented Locking Mechanism

• Prevents accidental disconnections
• Ensures a stable and uninterrupted connection even in high-vibration environments

Easy & Fast Cable Assembly

• Simplifies installation, reducing downtime
• Minimizes labor costs for industries requiring quick deployment

Cat. 6A Data Transmission Rate (Up to 10 Gbps)

• Supports high-speed Ethernet for data-intensive operations
• Ideal for IIoT (Industrial Internet of Things), cloud-based networking, and automation

360° Shielding Design for EMI Protection

• Blocks electromagnetic interference (EMI)
• Ensures consistent data transmission in high-noise environments

UL 94V-0 Rated Material for Durability & Safety

• Made from flame-resistant materials for enhanced safety
• Withstands extreme temperatures and harsh industrial conditions

IATF 16949 Certified

• Meets strict automotive industry quality management standards
• Ensures high reliability for critical applications, including transportation and automation

IEC Standard Compliance

• Ensures compatibility with other industrial equipment
• Provides seamless integration into existing networking systems

The versatility of M12 IDC connectors makes them suitable for a wide range of industries:

Factory Automation

• Enables real-time data transmission for automated systems
• Reduces downtime caused by connectivity issues

Transportation & Rail Systems

• Used in train signaling, onboard communication, and surveillance systems
• Provides reliable and interference-free networking

Industrial Networking & IIoT

• Supports smart factories and machine-to-machine communication
• Ensures seamless data flow in connected industrial environments

Military & Aerospace

• Designed to withstand extreme temperatures and high-vibration conditions
• Used in mission-critical applications requiring secure connectivity

These specifications highlight the connector’s ability to perform reliably in various challenging conditions, ensuring consistent high-speed data transmission.

Amphenol LTW's M12 IDC connectors are the industry leader in high-speed, interference-free, and durable industrial connectors.

With 360° shielding, IEC compliance, IATF 16949 certification, and up to 10 Gbps data transmission rates, they offer the reliability and performance needed in today’s demanding environments.

The Amphenol LTW M12 IDC connector is perfect for a secure, high-speed, and future-proof networking solution.
