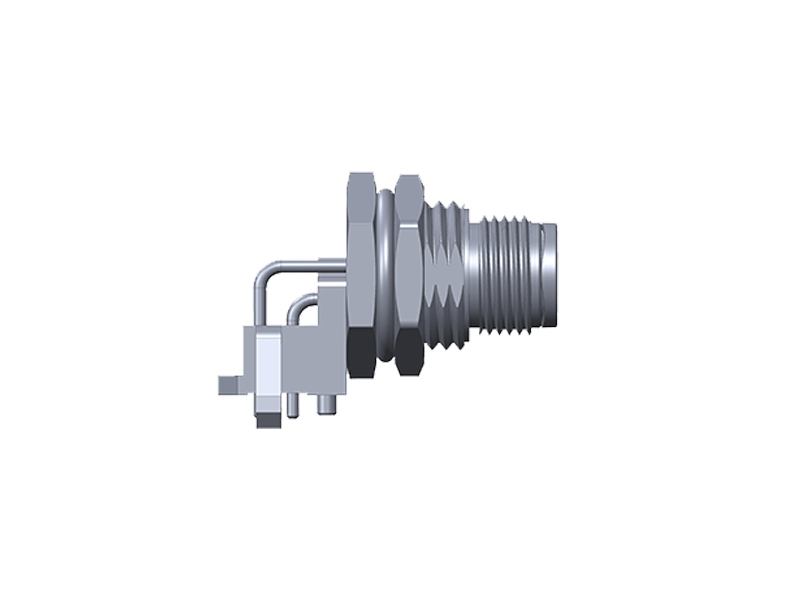

M12 Metric Circular Connector, L-Coded, Metal Non-shielded, 16A, 02 pins, Male Connector, Male Contact, Hexagonal, PG9, Screw Thread, PCB 90°, Receptacle, Front Fastened, IP68 / IP69K
無庫存情況下, 工廠標準前置時間8~10週。
型號: M12L-02PMMR-SF8001
| 數量 | 價格 |
|---|---|
| 1 ~ 99 | NT$ 342 (USD$ 11.79) |
| 100 ~ 499 | NT$ 228 (USD$ 7.86) |
| 500 以上 | NT$ 206 (USD$ 7.10) |
| 商品規格 | |
|---|---|
| 額定電流 | 16A |
| 線徑 | N/A |
| 鎖合方式 | Front |
| 板端螺母牙規 | PG9 |
| 編碼 | L |
| 鹽水噴霧測試 | 48h |
| 額定電壓 | 63V |
| 端子加工方式 | PCB 90° |
| 防水等級 | IP68 / IP69K |
| 接合方式 | Screw Thread |
| 背板樣式 / 出線方式 | Hexagonal |
| 端子 (公/母) | Male |
| 位置數 | 02 |
| 連接器類型 | Receptacle |
| 板厚 | For Panel: 4.50 ; For PCB: 1.60 |
| 連接器材質 | MetalNon-shielded |
