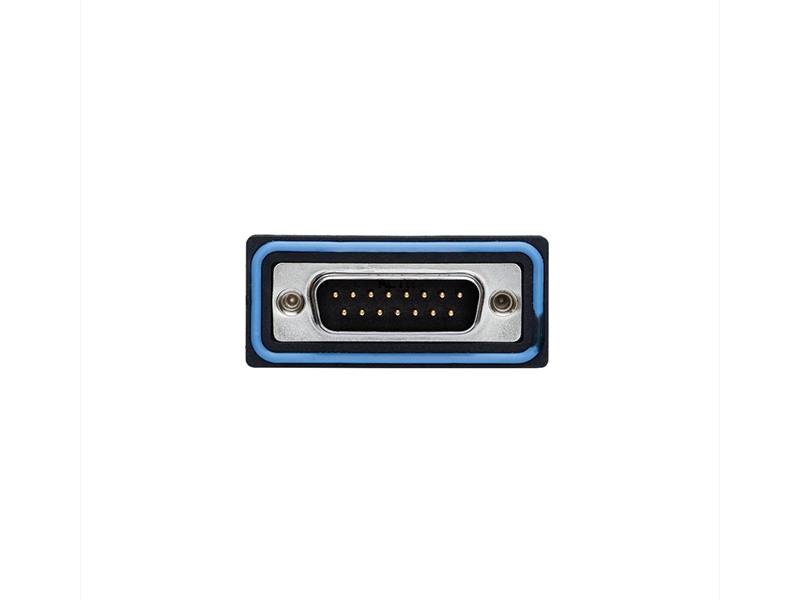

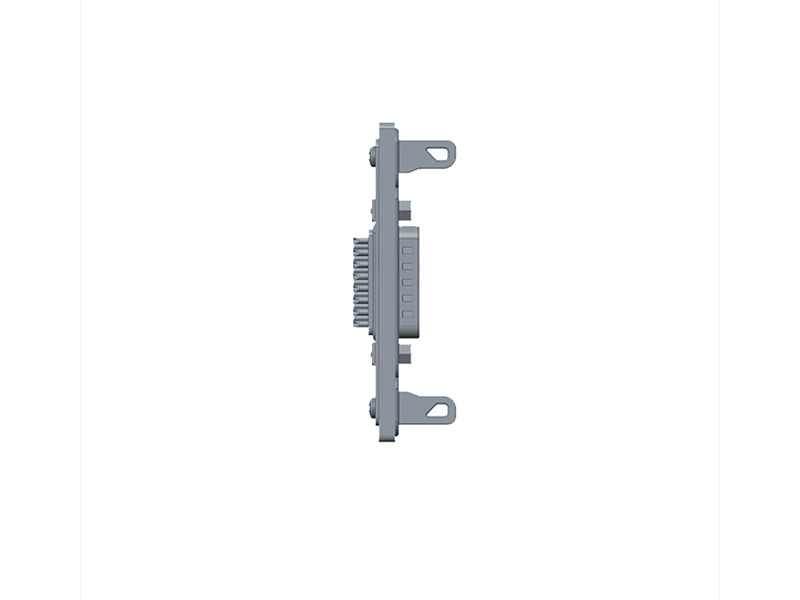

D-Sub, Standard, Metal Shielded, 5A, 15 pins, Male Connector, Male Contact, Straight, 4"-40 UNC, Automated Latch, Solder, Receptacle, Front Fastened, 22-26 AWG, IP68 Unmated
無庫存情況下, 工廠標準前置時間8~10週。
型號: SDB-15PMMS-QL8001
| 數量 | 價格 |
|---|---|
| 1 ~ 99 | NT$ 718 (USD$ 24.76) |
| 100 ~ 499 | NT$ 478 (USD$ 16.48) |
| 500 以上 | NT$ 454 (USD$ 15.66) |
| 商品規格 | |
|---|---|
| 額定電流 | 5A |
| 線徑 | 22 - 26 AWG |
| 鎖合方式 | Front |
| 板端螺母牙規 | 4 inch - 40 UNC |
| 線徑 (mm) | N/A |
| 鹽水噴霧測試 | 8h |
| 額定電壓 | 125V DC |
| 端子加工方式 | Solder |
| 防水等級 | IP68 |
| 接合方式 | Automated Latch |
| 背板樣式 / 出線方式 | Straight |
| 端子 (公/母) | Male |
| 位置數 | 15 |
| 連接器類型 | Receptacle |
| 板厚 | Refer to Drawing |
| 連接器材質 | MetalShielded |
